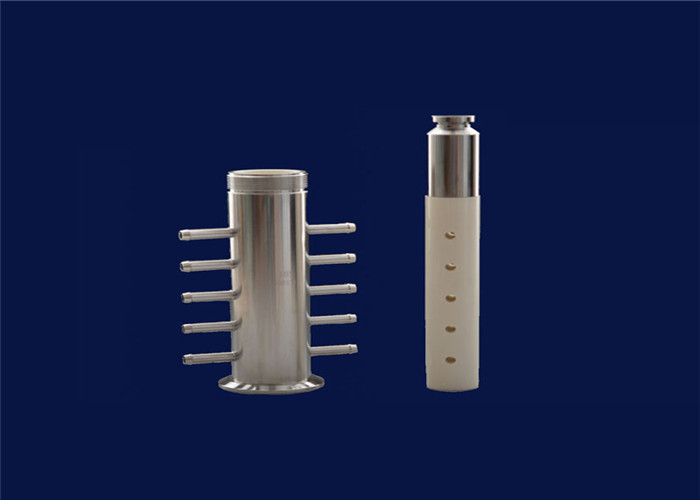

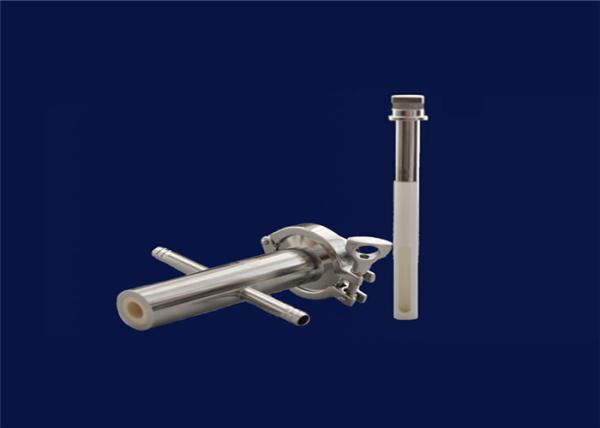

Advanced High Precison Ceramic Liquid Dispenser Plunger Pump
1. Feature:
a. The shape and size can be customized according to your requirements;
b. Minimum filling volume: 0.2ml
c. Maxmum filling volume: 50ml
d. Filling accuracy: ≤0.5%
e. Extremely smooth surface
f. Maintenance-free
g. Significantly extends life
h. Excellent wear and corrosion resistance
i. Superior mechanical strength
j. Extremely hard
k. Abrasion resistant and durable
2. Working principle:
3. Size:
| DC01 Series |
| Parameter | 2ml | 5ml | 10ml | 18ml | 20ml | 25ml |
| d1 | 20 | 20 | 28 | 31 | 34 | 37 |
| d2 | 30 | 30 | 30 | 33 | 36 | 39 |
| d3 | 8.9 | 8.9 | 9 | 10 | 10 | 10 |
| d4 | 30.5 | 30.5 | 34.5 | 37.5 | 40.5 | 43.5 |
| L | 175~225 | 190~250 | 190~248 | 190~248 | 190~248 | 190~248 |
3. Ceramic pump VS chromium pump VS glass pump
| | Chromium pump | Glass pump | Ceramic Pump |
| Hardness(Vickers) | 5~7 | 8~10 | ≥13 |
| Porosity | 1.5 | 5 | 0 |
| Supreme suitable Temperature | 300℃ | 250℃ | 1000℃ |
| Acid resistance | No | Yes | Yes |
| Alkali resistance | Yes | No | Yes |
| Surface roughness | ≥1.0μm | ≥2.5μm | ≤0.2μm |
| Lifespan(Ten thousand times) | About 300 | About 50 | ≥1000 |
| Particle release | More | Most | Few |
Properties of Alumina and Zirconia Ceramics :
| Properties | Units | 95 Alumina | 99 Alumina | ZrO2 |
| Density | g / cm³ | 3.65 | 3.92 | 5.95-6.0g/cm³ |
| Water absorption | % | 0 | 0 | 0 |
| Coefficient of thermal expansion | 10-6/K | 7.9 | 8.5 | 10.5 |
| Modulus of Elasticity Young's Mod | GPa | 280 | 340 | 210 |
| Poisson's ratio | / | 0.21 | 0.22 | 0.3 |
| HV Hardness HV | MPa | 1400 | 1650 | 1300-1365 |
| Flexural Strength @ room temperature | MPa | 280 | 310 | 950 |
| Flexural Strength @700°C | MPa | 220 | 230 | 210 |
| Compressive Strength @ room temperature | MPa | 2000 | 2200 | 2000 |
| Fracture Toughness | MPa *m 1/2 | 3.8 | 4.2 | 10 |
| Heat conductivity @ room temperature | W/ m*k | 18-25 | 26-30 | 2-2.2 |
| Electrical Resistivity @ room temperature | Ω*mm2 /m | >1015 | >1016 | >1015 |
| Max use temperature | °C | 1500 | 1750 | 1050 |
| Resistance to acid alkaline | / | high | high | high |
| Dielectric Constant | / | 9.5 | 9.8 | 26 |
| Dielectric Strength | KV/mm | 16 | 22 | / |
| Thermol Shock Resistance | △ T ( °C ) | 220 | 180-200 | 280-350 |
| Tensile Strength @ 25 °C | MPa | 200 | 248 | 252 |
Company Introduction:
Dongguan Ming Rui Ceramic Technology Co., LTD., a professional manufacturer of machined ceramic parts, has 10 senior engineers and lots of technicians. We produce strengthened structure zirconia ceramic bar, ceramic tube, ceramic shaft, ceramic plate, ceramic sleeve, ceramic valve, ceramic plunger and ceramic arm. The products are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military and some other high-end areas.
In cooperation with Tsinghua University, we've achieved great successes in particular requirements. With our professional knowledge and business experience in machined ceramic parts, low-budget and high-performance new ceramic products are made of high–quality raw materials. The value of our ceramic products is greatly increased due to the composite technology and precise processing.
Our high efficiency machined ceramic parts, perfect service and good reputation roots in our professional machined ceramic technology, continuous innovation, great sincerity and our pursuit for sustainable development. We have a unique technnology called “mirror polishing” that has improved the brightness, color, smoothness of our ceramic parts.
Realated Products Show
Factory Shows
FAQ
Q: How can i get a quotation ?
A: Please send your drawing or the details of your demand to us, then we will quote to you.
Q: How long is your delivery time?
A: Generally it will take about 15-30 days because the production process is a long time cycle, but if we have stock of the products you need, then we can ship out once we get the payment.
Q:.What terms can you accept for payment ?
T/T, L/C , Western union , Money Gram and Paypal is welcome , but paypal and western union only for small -sum payment.
Q:What about the package?
A:We pack with plastic bubble paper, carton box, then safe wooden box outside, we can control the breakage less than 1%
