Product Description
Refractory Heat Resistant Zirconia Ceramic Parts Solenoid Spacer
Advantages of Zirconia Ceramic Solenoid Spacer:
1. Refractory.
2. Long Service Life.
3. Good Polished Surface.
4. Superior Mechanical Strength.
5. High Corrosion and Wear Resistance.
6. Good Insulation Performance Precision.
7. High Temperature and Pressure Resistance.
8. High Purity Zirconia and Alumina Ceramic Material.
They deliver 10 times longer working life than other refractory and heat resistant materials.
Properties Sheet:
| Properties | Units | 95 Alumina | 99 Alumina | Zirconia |
| Density | ɡ / cm3 | 3.65 | 3.92 | 5.95 - 6.0 |
| Water Absorption | ％ | 0 | 0 | 0 |
| Coefficient of Thermal Expansion | 10-6 / K | 7.9 | 8.5 | 10.5 |
| Modulus of Elasticity Young’s Mod | Gpa | 280 | 340 | 210 |
| Poisson’s Ratio | / | 0.21 | 0.22 | 0.3 |
| HV Hardness | Mpa | 1400 | 1650 | 1300 - 1365 |
| Flexural Strength @ Room Temperature | Mpa | 280 | 310 | 950 |
| Flexural Strength @ 700℃ | Mpa | 220 | 230 | 210 |
| Compressive Strength@Room Temperature | Mpa | 2000 | 2200 | 2000 |
| Fracture Toughness | Mpa * m½ | 3.8 | 4.2 | 10 |
| Heat Conductivity @ Room Temperature | W / m * k | 18 - 25 | 26 - 30 | 2.0 - 2.2 |
| Electrical Resistivity @ Room Temperature | Ω*mm2 / m | ＞1015 | ＞1016 | ＞1015 |
| Max Application Temperature | ℃ | 1500 | 1750 | 1050 |
| Resistance to Acid Alkaline | / | High | High | High |
| Dielectric Constant | / | 9.5 | 9.8 | 26 |
| Dielectric Strength | KV / mm | 16 | 22 | / |
| Thermal Shock Resistance | Δ T ( ℃ ) | 220 | 180 - 200 | 282 - 350 |
| Tensile Strength @ 25℃ | Mpa | 200 | 248 | 252 |

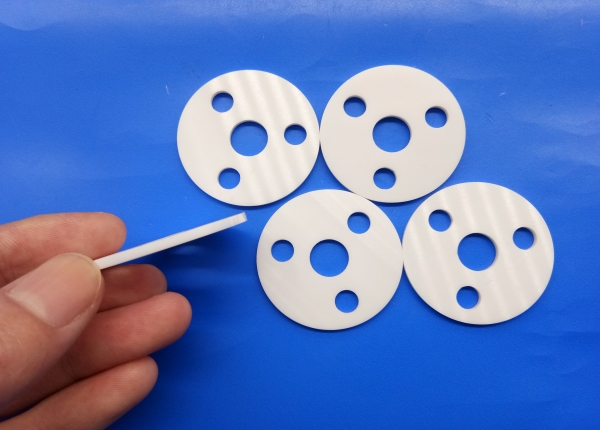

Product Photos Show
Related Products
Small size Zirconia ceramic washers / spacers
Blue color Zirconia ceramic washers
View More Products
Packaging and Shipping
Zirconia Ceramic Solenoid Spacer will be packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.
Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.
Company information
Who Are We?
Mingrui has professional OEM experience in manufacturing industrial ceramic parts for so many
years. We can make the products according to your drawings, custom the size, thickness and other parameters.
What Do We Do?
We have very advanced technologies in the production of zirconia and alumina ceramic nozzle, rod, ring, tube, shaft, plate, sleeve, valve, plunger, bearing, and semiconductive ceramics etc.. They are applicable to Electrical, Appliance, Oil & Gas, Energy & Power, Food & Medical, Agriculture, Aerospace,
even other high-end fields.
Our products with some certificates, such as , CE, TUV, etc..
Factory Show
Production Process Show
One-stop production, from the raw material powder to final product, control every production link well.
Core Technologies
1. Sintering Technology.
2. Molding Technology.
3. Grinding Technology.
4. Laser Carving Technology.
5. Laser Drilling Technology.
6. Polishing Technology.
7. Laser Marking Technology.
We have a advanced technical team with more than 80 people and more than 100 equipment machines.
